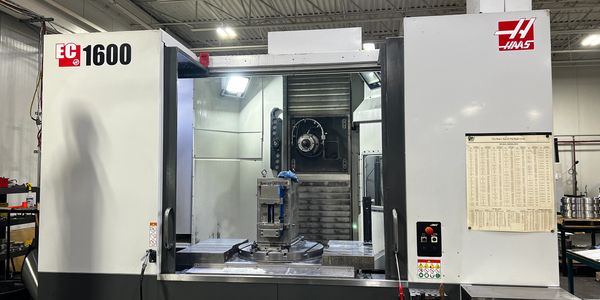

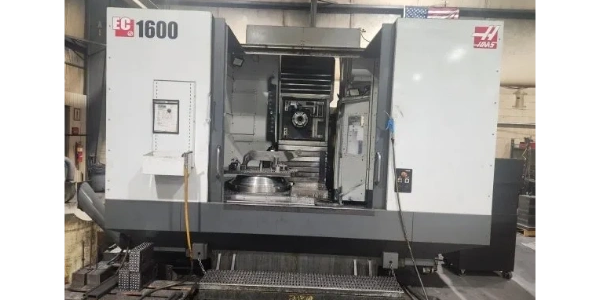

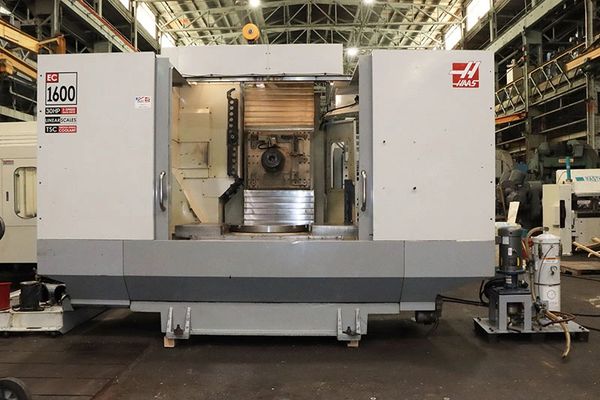

2017 HAAS EC-1600 CNC 4-AXIS HORIZONTAL MACHINING CENTER
2017 HAAS EC-1600 CNC 4-AXIS
HORIZONTAL MACHINING CENTER
Specifications
X-Axis 64"
Y-Axis 50"
Z-Axis 32"
Table: Length 64" x Width 36"
T-Slot width 5/8"
T-Slot center distance 4.92"
Max. weight on table (evenly distributed) 10,000 lb
Spindle Max. Rating 30 HP
Spindle Max. Speed 7500 RPM
Spindle Max. Torque 450 ft-lb @5,000 RPM
Drive system 2-speed geared head
Spindle Taper CT50
4th Axis (OPT):
Max. Rating 5.0 HP
Table 64"x32"
Platter diameter 30"
Max. weight on platter 10,000 lb
Rotational torque (continuous) 2000 ft-lb
Backlash 30 arc-sec
Gear ratio 500:1
Brake torque 4000 ft-lb
Min resolution 5 deg
Rapids on X,Y & Z 540 in/min
Max. cutting 500 in/min
Axis Motors:
Max. Thrust X & Y 5600 lb
Max. Thrust Z 7500 lb
Tool Changer: Type SMTC Capacity 30+1
Max Tool Diameter (adjacent empty) 10"
Max Tool Diameter (full) 4"
Max Tool Diameter (from gage line) 20"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 10.3 sec
Chip-to-Chip (avg) 12.6 sec
General:
Air required 9 scfm, 100 psi
Coolant capacity 95 gal
Equipped With
HAAS CNC CONTROL
50 Taper Spindle,
Full Enclosure
Ethernet Connection & Hard Drive
High Speed Machining
High Voltage Transformer
Programmable Coolant Nozzle,
Power Fault Detection
Thur Spindle Coolant High Pressure 300 PSI
Wireless Probe & USB Port
4th Axis Rotary Table
30 ATC Side Mount
Remote Job Handle,
Rigid Tapping
(2) Chip Auguers
Note: New Price $303,000
2009 HAAS VF-5D/40TR
2009 HAAS VF-5D/40TR
SPECIFICATIONS:
TRAVELS
X-AXIS ............................................................. 50"
Y-AXIS ............................................................. 26"
Z-AXIS ............................................................. 25"
A-AXIS TILT .................................................... + OR - 120 DEGREES
B-AXIS ROTATION ......................................... 360 DEGREES
PLATEN DIAMETER ....................................... 8.3"
MAXIMUM WEIGHT ON PLATTEN ................ 200 LB
TABLE DIMENSIONS ..................................... 52" x 23"
MAX WEIGHT ON TABLE .............................. 4,000 LBS
SPINDLE SPEED RANGE .............................. 0 - 10,000 RPM
SPINDLE MOTOR ..................................... 20 HP VECTOR DRIVE
SPINDLE TAPER ............................................ CT#40
TOOL CHANGER ............................................ 40 POSITIONS
APPROXIMATE MACHINE DIMENSIONS ….. 139"L x 102"W x 115"H
APPROXIMATE MACHINE WEIGHT............... 16,500 LBS
EQUIPPED WITH:
- HAAS 5-AXIS CONTROL (DRIVES & WIRING)
- TRUNNION TABLE 2-AXIS
- WIRELESS PROBING SYSTEM
- CHIP AUGER
- COOLANT SYSTEM
- REMOTE JOG HANDLE
- PROGRAMMABLE COOLANT
- RIGID TAP
2012 DOOSAN CNC MYNX 5400 VMC
2012 DOOSAN CNC MYNX 5400 VMC
SPECIFICATIONS:
X-AXIS TRAVEL ............................. 40.2" / 1020mm
Y-AXIS TRAVEL ............................. 21.3" / 540mm
Z-AXIS TRAVEL ............................. 20.9" / 530mm
TABLE SIZE ................................ 47.2" x 21.3"
TABLE LOAD CAPACITY ....................... 1764 LBS
TABLE TOP TO SPINDLE NOSE ................. 5.9" - 26.8"
SPINDLE TAPER ............................. CAT-40
SPINDLE SPEED ............................. 8,000 RPM
SPINDLE MOTOR ............................. 30 HP
SIDE MOUNT TOOLCHANGER .................... 30 ATC
RAPID TRAVERSE RATE (X,Y/Z) ............... 1181/945 IPM
CUTTING FEED RATES ........................ .04 - 472 IPM
APPROXIMATE FLOOR SPACE ............... 96.2" x 132" x 108"H
APPROXIMATE MACHINE WEIGHT ................ 15,500 Lbs.
EQUIPPED WITH:
- FANUC SERIES I WITH EZ GUIDE CONTROL
- BOX WAY CONSTRUCTION
- COOLANT THROUGH SPINDLE
- DOUBLE ARM, SIDE MOUNT AUTOMATIC TOOL CHANGER
- DUAL AUGERS
- 20 HORSE POWER SPINDLE MOTOR

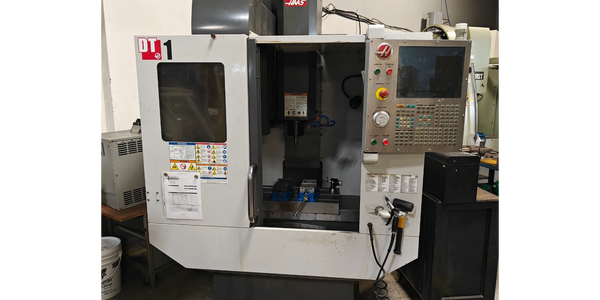

2010 HAAS DT-1
2010 HAAS DT-1
Specifications
Table Size:26 IN x 15 IN
Max Table Load:250 LBS
X-Axis Travel:20 IN
Y-Axis Travel:16 IN
Z-Axis Travel:15.5 IN
Rapid Rate (X, Y, & Z):2,400 IPM
Spindle Motor:15 HP
Spindle Speed:15,000 RPM
Spindle Taper:BT30
Spindle Max Torque:46 FT/ LBF
Tool Change Capacity:20+1
Power Required:220V / 3Ph
Approx. Shipping Weight:5,200 LBS
Approx. Shipping Dimensions:100″ L x 80″ W x 98″ H
Equipped With
25 BT30 toolholders
4th axis wired
touch probe
Vise
2008 HAAS VF-2
2008 HAAS VF-2
Table Size: 36" x 14"
Table Capacity: 3,000 pounds
X-Axis Travel: 30"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Spindle Taper: BT 40
Spindle Speed: 10,000 rpm
Main Motor: 20 hp
Tool Changer Capacity: 24
Machine Weight: 8,000 pounds
Equipped With
10K Spindle
Sidemount toolchanger
Gearbox
Programmable coolant
Coolant level float
55 Gallon coolant tank
Brushless 4th axis wiring
Auto air gun
Chip auger
BT option (originally purchased with CT option but changed to BT)
ETHERNET/HD Interface/Hard drive
High speed machining
Rigid tapping
VICES NOT INCLUDED
Service:
Spindle was replaced in 2017
Oil gear pump assembly replaced in 2018
Vector drive replaced in 2021

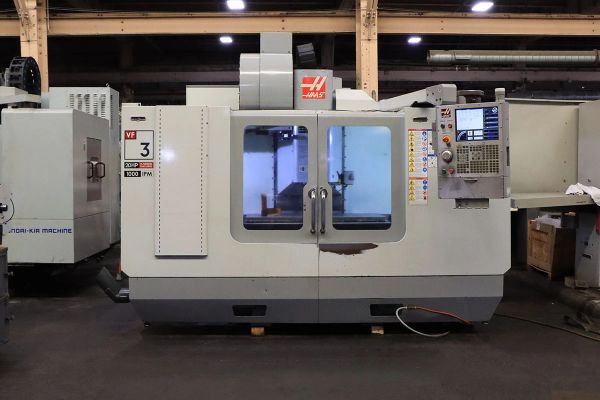

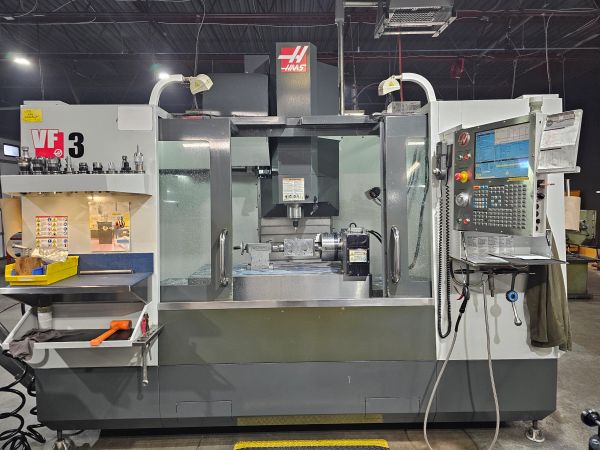

2013 HAAS VF-3
2013 HAAS VF-3
Table Size L x W: 48” x 18”
X Axis Travel: 40”
Y Axis Travel: 20”
Z Axis Travel: 25”
Rapid Rate X Axis: 1000 IPM
Rapid Rate Y Axis: 1000 IPM
Rapid Rate Z Axis: 1000 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP Vector Drive
Spindle Taper: Cat 40
Spindle Speed: 8100 RPM
24 + 1 Tool Changer
Rigid Tapping
Dimensions L x W x H: 131” x 92” x 101”
Weight: 12,000 LBS.
Equipped With
Renshaw Probe System
4th Axis Drive
Chip Auger
Automatic Air Gun
Early Power Failure Detection Mode
High Intensity Lighting
Remote Jog Handle
Rigid Tapping
1MB Memory
15” Color LCD Monitor
55 Gallon Coolant Tank
USB Port
Rotary table may be available at time of purchase
Cutting hours on 02/12/24 2,627hrs

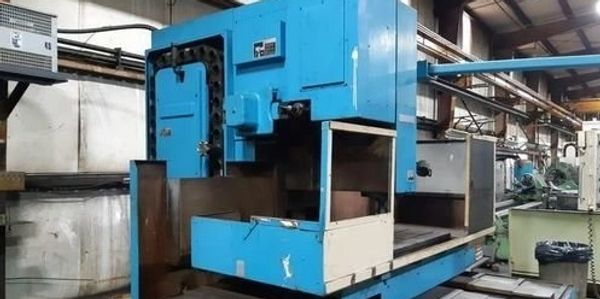

1983 MORI SEIKI MV-80
1983 MORI SEIKI MV-80
X 60"
Y 31.5"
Z 29.5"
Power 20 hp
RPM 3,500 RPM
# ATC 32
Table-W 31.5"
Table-L 74.8"
Taper BT50
# Axis 3
Dimensions
197" L (W/CONVEYOR) x 150" W x 138" H
Weight 31,000 LBS
Control CNC (FANUC 6M)
SPEC SHEET
Maximum load is 4,400 lbs
1997 Milltronics VM24 Series B
1997 Milltronics VM24 Series B
Table Size: 45" x 24"
X Axis Travel: 40"
Y Axis Travel: 24"
Z Axis Travel: 24"
Maximum Table Load: 3500 lbs.
Spindle Speeds: 8000 RPM
Spindle Taper: Cat 40
Cutting Feed Rates: 0.1- 200 IPM
Rapid Traverse Feed Rate(X/Y/Z): 750 IPM
Automatic Tool Changer Capacity: 20 Stations (Carousel)
Dimensions (L x W x H): 111" x 105" x 115"
Machine Weight: 11,000 Lbs.
Equipped with:
- Centurion 6 CNC Control
- Rigid Tapping
- Chip Auger
- Auto Lube System
- Coolant System

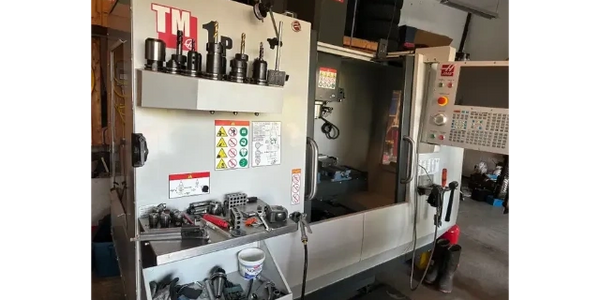

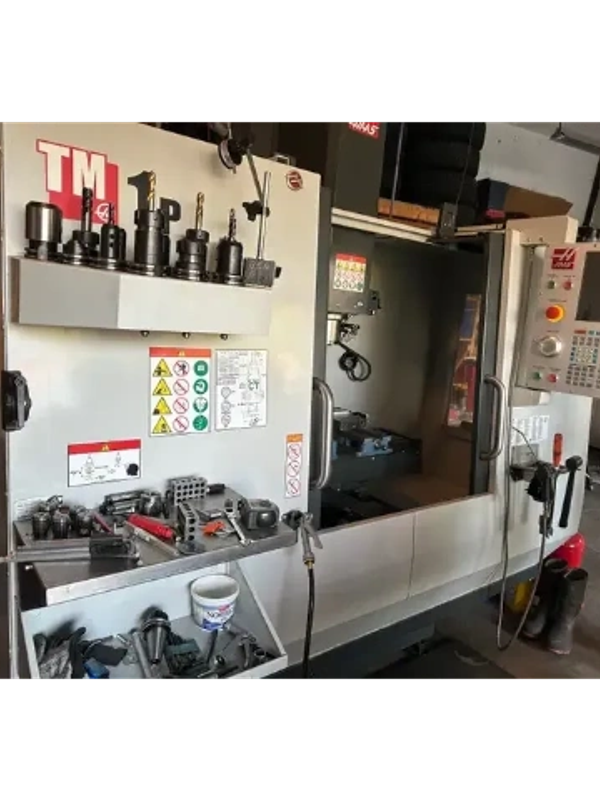

2020 Haas TM-1P
2020 Haas TM-1P
X-Axis Travel: 30"
Y-Axis Travel: 12"
Z-Axis Travel: 16"
Spindle Speed: 6,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 7.5 HP
Tool Magazine Capacity: 10 ATC
Control: Haas CNC
Equipped With
1GB memory
Chip auger
High flow coolant pump
ETHERNET interface
Haas connect
Low voltage transformer
Media display
Rigid tapping
Visual programming system
WIFI connection
WIPS-Renishaw
Macro option
Coordinate, rotation & scaling
Spindle orientation
Worklight
10 pocket toolchanger
6000 rpm spindle
2022 HAAS TM-2P NEVER CONNECTED TO POWER..ZERO HOURS SEE NOTE BELOW
2022 HAAS TM-2P
GENERAL SPECIFICATIONS:
X-Axis Travel: 40"
Y-Axis Travel: 16"
Z-Axis Travel: 16"
Spindle Speed: 6,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 7.5 HP
Coolant: Programmable Coolant Nozzle
Control: Haas CNC
Chip Removal: Chip Conveyor
Additional Axis: 4th Axis Ready
Options:
1GB memory
Brushless 4th axis option
Chip auger
High flow coolant pump kit
ETHERNET Interface
Haas connect option
Low voltage transformer
Macro
Media display M-Code
Programmable coolant
Remote jog handle
Rigid tapping
20 pocket toolchanger
Visual programming system
WIFI Connection for Haas control
Worklight
NOTE: Warranty/length/installation/training to be determined at time of purchase
New with these options approx. $86,000.00 CAD + approx. $13,000.00 CAD shipping
2021 HAAS VF-5/40
2021 HAAS VF-5/40
X AXIS TRAVEL 50”
Y AXIS TRAVEL 26”
Z AXIS TRAVEL 25”
SPINDLE SPEED 8,100 RPM
SPINDLE MOTOR 30HP INLINE DIRECT VECTOR DRIVE
SPINDLE TAPER CAT 40
TOOL CHANGER 30 + 1 SIDEMOUNT
RAPIDS 710 IPM
EQUIPPED WITH
THROUGH SPINDLE COOLANT
95-GAL COOLANT TANK FLLOD COOLANT SYSTEM
CHIP AUGER
HIGH INTENSITY LIGHTING
PROGRAMMABLE COOLANT NOZZLE
AUXILIARY COOLANT FILTER
CHIP TRAY FILTER KIT
WIPS PROBING SYSTEM
1GB MEMORY
15” COLOR LCD MONITOR
HIGH SPEED MACHINING
WIFI CONNECTION FOR THE HAAS CONTROL
ETHERNET INTERFACE
MEMORY EARLY POWER FAILURE DETECTION MODE
LOCK KEYSWITCH
RIGID TAPPING
VISUAL PROGRAMMING SYSTEM
SPINDLE ORIENTATION
COORDINATE, ROTATION AND SCALING
Jones & Shipman (England) Model - 1300
Jones & Shipman (England) Model - 1300
Center Height - 127 mm 5”
Max. Job Diameter - 254 mm 10”
Max. Length of Job - 686 mm 27”
Grinding Wheel Size - Diameter 305 mm x 25.4 mm Width…..Dia 12” x width 1”
Power 5.5 hp
Workhead Power 4 hp
Work-Head Speeds - 40 rpm to 320 rpm
Max Weight Between Centers
Table Rotation - 20 Degree to -18 Degree
- With Internal Grinding Attachment.
- With Wheel Dresser, 2 x Steady, other accessories etc.
- With Coolant Tank & Coolant Pump.
In excellent running condition and can be seen under power
Machines available, contact for details
Chevalier FSG-3A 818
Chevalier FSG-3A 818
Grinding length: 18.0″
Grinding width: 8.0″
Distance table to centerline of wheel: 17.7″
Max. table load: 551 lbs
Table size: 8.0″ x 18.0″
Max. table travel: 20.9″
Table speed (varible): 16 ~ 82 fpm
Traverse movement (Z) Feed: 37 ipm
Auto traverse movement: 0.02″ ~ 0.24″
Max. manual travel: 9.4″
Spindle speed: 3,450 rpm (60 Hz)/ 2,850 rpm (50 Hz)
Spindle motor: 2 HP
Integrated wheel dresser
Wheel dimension (OD x Width x Bore): 8” × 0.5” × 1.3”
Approx Machine dimensions (W x D x H): 88.6″ x 70.5″ x 74.8″
Approx weight: 2,910 lbs
Powermill Kondia
Powermill Kondia
Year: 1999
Model: FV-1
Serial: AB838
Table Size: 9” x 48”
Power Feed
Digital Readout
3-Phase
2015 Haas TM-2P
2015 Haas TM-2P
X-Axis Travel: 40"
Y-Axis Travel: 16"
Z-Axis Travel: 16"
Spindle Speed: 6,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 7.5 HP
OPTIONS
· 4th & 5th axis drives
· TRT100 Dual-Axis Rotary
- 20 station tool changer
- High-flow coolant tank
- Programmable coolant nozzle
- Chip auger
- Remote jog control
- Rigid tapping
- Spindle orientation
- Coordinate rotation and scaling
- Wireless intuitive probing system
Early power-failure detection module )
First Mill
First
Year: 1995
Model: LC-1 ½ TM
Serial: 71225341
Table Size: 9” x 42”
Digital Readout
3-Phase
2012 HAAS MINIMILL
2012 HAAS MINIMILL
SPECIFICATIONS
X AXIS TRAVEL 16"
Y AXIS TRAVEL 12"
Z AXIS TRAVEL 10"
RAPID RATE X AXIS 600 IPM
RAPID RATE Y AXIS 600 IPM
RAPID RATE Z AXIS 600 IPM
TABLE SIZE 28.75" x 12"
MAX TABLE LOAD 500 LBS
SPINDLE MOTOR 7.5 HP
SPINDLE SPEED 6,000 RPM
SPINDLE TAPER 40 CT
TOOL CHANGER 10 ATC
SPINDLE BEARING LUBRICATION Grease Packed
COOLING Air Cooled
MAX CUTTING 500 IPM
AXIS MOTORS 2,000 IBF Max Thrust
X,Y,ZMAX TOOL DIA 3.5"
MAX TOOL WEIGHT 12 lbs
CHIP TO CHIP 5 Sec
COOLANT CAPACITY 40 Gal Standard
AIR REQUIRED 100 PSI
FULL LOAD AMPS 13/25
INPUT VOLTAGE POWER SUPPLY220 3 Phase
DIMENSIONS 90" x 64" x 100"
WEIGHT 4,000 LBS

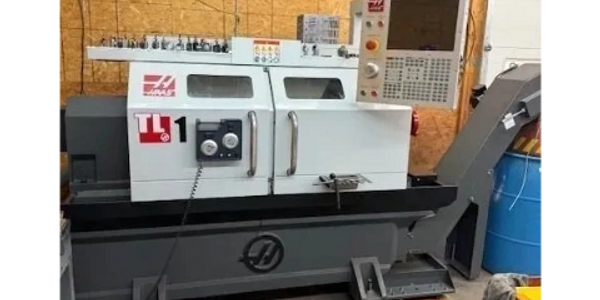

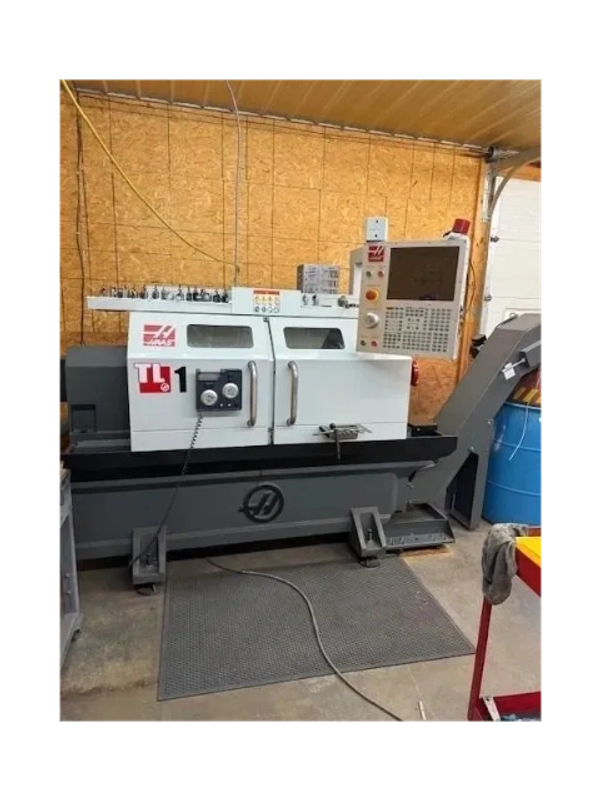

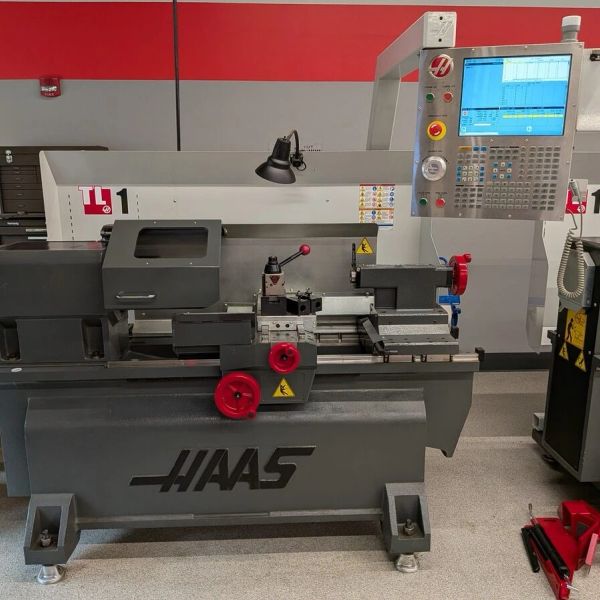

2012 Haas TL-1
2012 Haas TL-1
SPECIFICATIONS:
X-Axis Travel…………………………………………………….l8″
z-Axis Travel…………………………………………………….30″
Swing Over Front Apron……………………………………….16″
Swing Over Cross Slide……………………………………..…9.5″
Recommended Chuck Size (Not Included)…………………..8″
Cutting Diameter – Maximum…………………………….……16″
Cutting Length – Maximum……………………………………..30″
Distance Between Centers……………………………………..30″
Spindle Speed – Maximum……………………..……1,800 RPM
Spindle Motor……………………………………………….7.5 HP
Torque – Maximum……………………100 Ft.-Lbs. @ 375 RPM
Spindle Nose………………………………………….……….….A2-5
Spindle Bore………………………………………………………2.31″
Rapid Traverse Rates…………………………….75X / 150Z IPM
Electrics……………………..….…..208-240V/1Ph or 3Ph/60Hz
Dimensions – Actual…………….………86″(L-R) x 58″(F-B) x 79
EQUIPPED WITH
Haas CNC Control w/Intuitive Programming
8” 3-jaw chuck
4-Pocket Tool Turret
Tailstock
Coolant pump
750 MB expanded memory
Work light
From school, 42K new
VERTICUT ROLL-IN BAND SAW MODEL 115B
VERTICUT ROLL-IN BAND SAW MODEL 115B
CAPACITY ............. . . . . . . 10”
ROUND AT 45 DEGREES. . . . 7”
RECTANGULAR . .. . . . 10” X 13”
BLADE SIZE. . . . . 1/4”- 3/4” X 10’
CUTTING SPEEDS (3). . . . . . .76/ 135/262 FPM
TABLE SIZE . . . . . . . . . .18” X 30”
MOTOR. . . . . . . . . . 3/4 HP TEFC
ELECTRICS. . . .. . . 110/60/1 VOLT
APPROX. DIMENSIONS . . . . . 32” W X 48” D X 66” H
WEIGHT. .. . . . 800 LBS. APPROX.
C/W:
- ON/OFF SWITCH;
- MITRE BLOCK FOR 45 DEGREE CUTS;
- SLIDING WEIGHT TO ADJUST CUTTING FORCE;
- MADE TO CUT FERROUS & NON FERROUS MATERIALS;
VERTICUT® MODEL 300V VERTICAL BANDSAW **LIKE NEW LOW HOURS**
1-1/4” BLADE
5 HP (3.75 kW) BLADE DRIVE
DIRECT DRIVE HEAVY DUTY PLANETARY GEARBOX
ELECTRONIC VARIABLE BLADE SPEED
VERTICUT® MODEL 300V VERTICAL BANDSAW
CUTTING CAPACITY
Round 12" (300 mm)
Rectangular 12" x 14" (300 x 360 mm)
SPECIFICATIONS
Blade Size 1 1/4" x 14' 6” (32 mm x 4420 mm)
Blade Speeds 60 to 400 ft/min (18 to 122 m/min)
Blade Tension 25,000 psi (172 MPa)
Table Height 35" (890 mm)
Maximum Workload 3,000 lb (1360 kg)
Machine Weight 1,900 lb. (861 kg)
Overall Dimensions 99” x 48” x 80”(2514 mm x 1219 mm x 2032 mm)
DRIVE
Blade Drive 5 Hp (3.75 kW)
Hydraulic Drive 2 Hp (1.5 kW)
Voltage available (single phase) 460 Volts, 3 phase, 60Hz
FEATURES INCLUDED AS STANDARD EQUIPMENT
· Blade is oriented vertically.
· Machine movement is on linear bearing to provide maximum rigidity and smooth motion.
· The saw head feed utilizes a load sensing valve which stops the feed if the blade starts to over-
load, typical when cutting the web of structural shapes.
· Blade Guides are carbide faced with roller to remove blade twist and dampen vibration.
· Magnetic motor starter with automatic shut off at the end of cut, motors thermal overload protection.
· Blade is preloaded to optimize cutting.
· Blade tension is adjusted manually.
· Blade drive system consists of a direct drive, high efficiency planetary geardrive. Blade speed
controlled with a variable frequency drive.
· Manual saw forward, saw retract, saw cut, vise open/closed.
· Controls are to the rear of the machine.
· Blade breakage switch.
· Ductile iron wheels.
· Mist coolant system.
·Electrical system uses only C.S.A./UL approved components and is electrically approved.
· Premium quality bimetal bandsaw
Very low hours (50hrs) Is in like new condition.
Few blades included.
Can be seen under power.
Note:
As per Baxter Verticut there are no 300V’s scheduled to be built this year.
Last price listed for this model was $30,995.00 CAD.

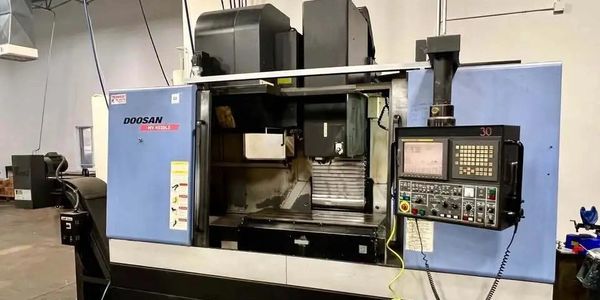

2005 Doosan DMV4020 Vertical Machining Center
2005 Doosan DMV4020 Vertical Machining Center
Table Size : 47" X 20"
Maximum Table Load: 1,760 Lbs
X Axis Travel: 40.1"
Y Axis Travel: 20.1"
Z Axis Travel: 24.6"
Spindle Nose To Table Top: 6" - 31"
Rapid Traverse Rate X & Y Axes: 1181 Ipm
Rapid Traverse Rate Z Axis: 945 Ipm
Spindle Taper: Cat 50
Spindle Speed: 6,000 Rpm
Spindle Motor: 20 Hp
Tool Changer Capacity: 24 Side Mount
Current Electrical Arrangement: 220/3/60
Equipped With
Fanuc 21i-MB CNC Color Control,
RS-232C Port Interface For DNC Operation,
Hand-Held Remote Pulse Generator,
Coolant System Kaukan
Full Enlcosures
Box Way Construction
Approximate Dimensions: 129"(LR) X 107"(FB) X 116"(H)
Approximate Weight: 15,800 Lbs
Price $39,900.00 CAD
Special Price $34,900.00 CAD
Thank you for your business!
Specifications are approximate,
intended solely as a guide and are not binding.
It is the buyers’ responsibility to inspect the goods
and ascertain if the specifications, description,
and condition of the goods conform to the buyers’ requirements..
Kao Ming KMR-1100S RA Drill
Kao Ming KMR-1100S
Serial Number: R10534
Year of manufacture: 2017
Condition of Machine: Excellent
Specifications
Machine Type/Description: Radial Arm Drill
Capacity: Drilling: 55/45 (2-1/4" / 1-3/4"), Boring: 150/100 (6" / 4"), Tapping: 38/25 (1-1/2" / 1")
Table Size: 750mm L x 500mm W x 400mm H
Spindle Motor Power Rating: 2200 W
SSpindle RPM: Min 41 RPM - Max 1524 RPM
Spindle Taper Size: Cat40
Tool Changer Type: carousel
Tool Changer Capacity : 20
Features & Included Equipment
- Gearbox with automatic lubrication
- Double tube column
- Drilling depth setting
- 9 stages of speed
- Safety feeding device
Tool set - 1 set
Drilling oil pump - 1 set
Table - 1 set
Machines available, contact for details
2006 Fadal 4525
2000 Fadal VMC 3016
Specifications
X Axis Travel: 30″
Y Axis Travel: 16″
Z Axis Tavel: 20″
Table Size: 39″ x 16″
Table Load Capacity: 2,736 Lbs.
Spindle Speed Range: 7500 RPM
Spindle Taper: Cat 40
Spindle HP: 12.5 HP
Spindle Center to Column: 16″
Rapid Feed Rate (X,Y): 900 IPM
Approx. Shipping Weight: 8,300 Lbs.
Approx. Shipping Dimensions: 98″ L x 100″ W x 104″ H
Equipped With:
Fadal CNC 88HS,
7,500 RPM Spindle,
21 Station Tool Changer
DC direct drive
4th axis table,
2002 Okuma Crown L1060
2002 Okuma Crown L1060
Specifications
Turning: 500.4 mm
Turning Ø: 269.2 mm
Ø above the bed: 551.2 mm
Ø above transversing slide: 500.4 mm
Length between centers: 500.4 mm
Type of CNC: OKUMA OSP700L
X-axis: 185.4 mm
Z-axis: 520.7 mm
Spindle taper: A2-8
Spindle bore: 81.3 mm
Number of turrets: 1
Number of tools on turret: 12
Number of rotating tools: 0
Turning speed: 4200 rpm
Spindle motor power: 11.2 kW
Length x width x height: 2641.6 × 1778.0 × 1778.0
Weight: 4537.2 kg

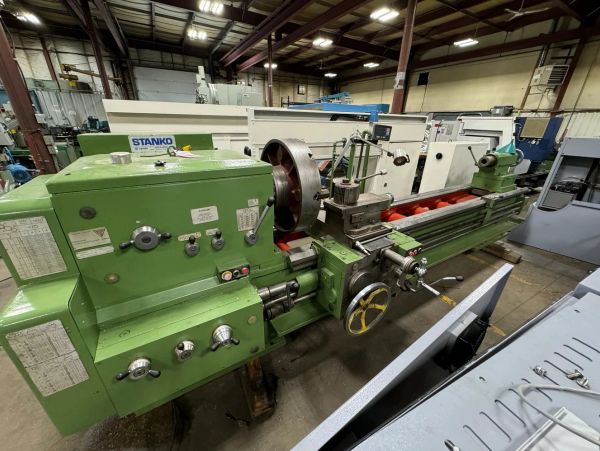

1994 Wroclaw TUR 630A X 80” Lathe
1994 Wroclaw TUR 630A X 80” Lathe
Specifications
Swing over Bed: 25"
Distance between Centers (max): 80”
Width of Bed: 17"
Spindle Bore / Spindle Nose: 5.5”/D1-11
Chuck Size: 12” Autoblok BBDB12
Spindle Motor Power Rating: 20 hp
Spindle RPM: 1400 rpm
Turret Style: 6.25” 4 way toolpost
List Standard Equipment Included:
Morse 5 Live center and Dead center, boring bar holder
List Optional Equipment Included:
Digital Readout, 900 lb machine mounted jib with hoist
2012 Doosan DNM500 VERTICAL MACHINING CENTER 4+1 AXES MACHINE & TRUNNION
2012 Doosan DNM500 VERTICAL MACHINING CENTER
4+1 AXES MACHINE & TRUNNION
SPECIFICATIONS:
X-AXIS TRAVEL.............. 40.2" / 1020mm
Y-AXIS TRAVEL.............. 21.3" / 540mm
Z-AXIS TRAVEL.............. 20.1" / 510mm
TABLE SIZE................. 47.2" X 21.3" / 1200 X 540mm
MAXIMUM TABLE LOAD......... 1763 LBS / 800 kg
SPINDLE NOSE TO TABLE TOP.. 5.9" - 26"
SPINDLE MOTOR.............. 20 HP
MAX SPINDLE SPEED.......... 8,000 RPM
SPINDLE TAPER.............. CAT 40
AUTOMATIC TOOL CHANGER..... 30 TOOLS
RAPID TRAVERSE RATES X-Y/Z. 1417/1181 IPM
APPROXIMATE MACHINE DIMS... 90" X 134" X 106.5"
APPROXIMATE MACHINE WEIGHT. 14,500 LBS
EQUIPPED WITH:
FANUC Oi-MD FOUR AXIS CNC CONTROL
REMOTE JOG HANDLE MPG
ATS ACCU-ROCK MODEL: AX 140 CNC TRUNNION TABLE FULL FOURTH
PLUS TILTING INDEXING AXIS
COOLANT THRU SPINDLE
DUAL AUGERS
30 STATION SIDE MOUNT ATC
SPINDLE CHILLER

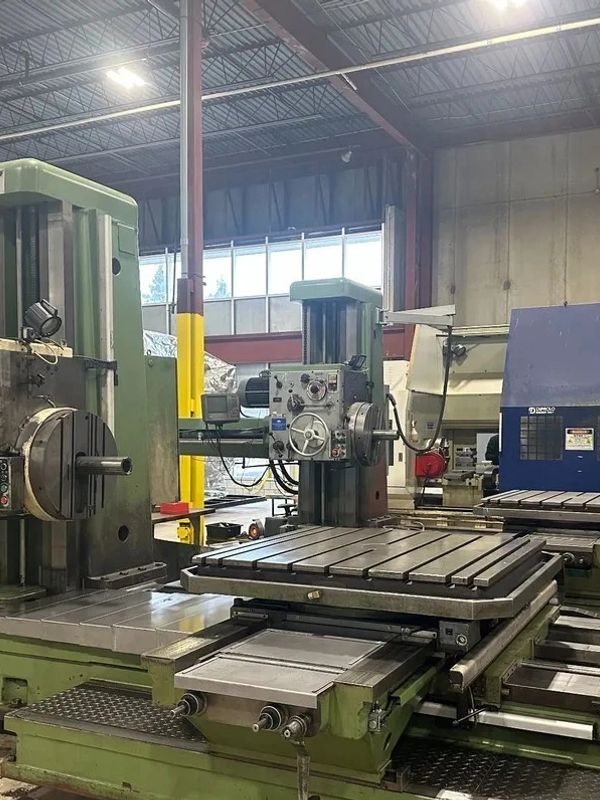

Giddings & Lewis Boring Mill
Giddings & Lewis Boring Mill
Year/Model Unknown
Spindle Size 4” Cat50
X Travel 72”
Y Travel 51”
Z Travel 47”
Table Size 42” x 71”
Spindle RPM 5,000rpm
Control Heidenhein TNC530
Allen Bradley AC Drives
1999 Fanuc Robocut a-1iA CNC Submerged Wire EDM
1999 Fanuc Robocut a-1iA CNC Submerged Wire EDM
Specifications (subject to buyer verification):
Vertical Table / Pallet Size: 12" x 8""
X-Travel: 13"
Y-Travel: 9"
Z-Travel: 12"
Max Workpiece Weight: 1,000lbs
Product Description: (subject to buyer verification)
Max Workpiece Size: 26" x 17" x 7"
U/V Axis Travel: +/- 2.364"
Taper Capacity: +/- 26 Deg. In 4"
Wire Diameters: .004"-.012"
Dielectric Capacity: 127 Gallon
Equipped With (subject to buyer verification):
Fanuc Series 18i-W Control
Submerged Style Wire EDM
In good condition view under power
Kao Ming KMR-1100S
Kao Ming KMR-1100S
Serial Number: R10534
Year of manufacture: 2017
Condition of Machine: Excellent
Specifications
Machine Type/Description: Radial Arm Drill
Capacity: Drilling: 55/45 (2-1/4" / 1-3/4"), Boring: 150/100 (6" / 4"), Tapping: 38/25 (1-1/2" / 1")
Table Size: 750mm L x 500mm W x 400mm H
Spindle Motor Power Rating: 2200 W
SSpindle RPM: Min 41 RPM - Max 1524 RPM
Spindle Taper Size: Cat40
Tool Changer Type: carousel
Tool Changer Capacity : 20
Features & Included Equipment
- Gearbox with automatic lubrication
- Double tube column
- Drilling depth setting
- 9 stages of speed
- Safety feeding device
Tool set - 1 set
Drilling oil pump - 1 set
Table - 1 set
2004 Doosan Puma 240B
2004 Doosan Puma 240B
Specifications
Swing 21.7"
Max Turning Length 21.6"
Max Turning Diam. 13.8"
Turret Capacity 12 Position
Z axis travel 22.8"
X axis Travel 9.5"
Bar Capacity 2.6"
Spindle HP 25HP
Spindle RPM 45 - 4,500 RPM
Chuck Size 10"
Equipped With
Fanuc 21iTB Control
Tailstock
Chip Conveyor
Tool Presetter
10” Chuck
2008 Takumi V10 Vertical Machining Center
2008 Takumi V10 Vertical Machining Center
Travels : X 40", Y 26", Z 24"
Table Size: Length 42", Width 26"
Spindle Motor Power Rating: 20 HP
Spindle RPM: 12,000 RPM
Spindle Drive System: Belt Drive
Spindle Taper Size: CAT 40
Tool Changer Type: Side-Mouth
Tool Changer Capacity: 24 + 1
2000 Hitachi Seiki VS50
2000 Hitachi Seiki VS50
Hitachi Seiki VS50 Specifications:
- X-Axis: 40.1”
- Y-Axis: 20.1”
- Z-Axis: 17.7”
- Table Length: 44”
- Table Width: 20”
- Max Weight on Table: 1,700 lbs
- Spindle Taper Size: cat 40
- Speed range: 60 – 20,000 RPM
- Spindle Power: 20 HP
- Feed Rates: Rapid X,Y & Z: 1570 inch/P.M
- Cutting feedrate: 945” inch/P.M
- Automatic Tool Changer:
- CAT40 Taper
- Tool Changer Capacity: 20 Tools
- Max Tool Weight: 31 lbs
- Max Tool Length: 11.8”
- Max Tool Dia: 4.90”
- Air required: 80 psi, 4 scfm
- Power 205-220v/ 66FLA / 3-Phase
- Overall Dimension: 3.5 m * 3.0 m* 2.8 m
Equipped With
- Seicos 18M ( Faunc 18-iM) CNC Control
- Bridge Type Constructions for Heavy Cutting
- PCMCIA Card Slot
- MPG Control
- 20 Tools High-Speed Tool Changer
- High Precision 20,000 RPM
- Powerful 30 hp high torque spindle motor
- Spindler Chiller
- RS-232 Port
- Direct Tapping
- Fast Rapid Traverse Rate
- High-Pressure Coolant System with Tank
- Chip Conveyor
- Work light
- Books and Manuals
1998/99 Hitachi Seiki HS500
1998/99 Hitachi Seiki HS500
Horizontal Machining Center
· SEICOS 10M control.
· 40 ATC
· CAT 40
· 25HP (TBD)
· Daikin chiller
· Fine filter drum style
· (2) Pallets: 19.68" x 19.68".
· Table Load 2200lbs
· Table Index 1 DEG.
· Travels X-26.8", Y-26.8", Z-26.8".
· Rapid Traverse 1772 IPM.
· Cutting Rate 787 IPM.
· 20,000 RPM.
· Chip Blaster High Pressure Flood Coolant. 300psi
